Ha Cluster Virtual Mac Addresses

Di: Jacob

Technical-Tip-HA-Cluster-virtual-MAC-addresses; cluster-virtual-mac-addresses; Labels: FGCP; HA; virtualcluster; vmac; 3461 8 Kudos Submit Article Idea. This virtual MAC address is in the format 00-09-0f-06-ff-xx. To fix this issue, consider changing the group ID of HA1 and HA2 to be different .When the new primary unit is selected after a failover, the primary unit sends gratuitous ARP packets to update the devices connected to the cluster interfaces (usually layer-2 switches) . The primary device uses the virtual MAC address to respond to ARP requests made to the cluster. Cluster virtual MAC addresses Abbreviated TLS handshake after HA failover Session synchronization during HA failover for ZTNA proxy sessions FGCP HA between FortiGates of the same model with different AC and DC PSUs . Select a dedicated HA link. Related articles: How to set or change the MAC addresses .A virtual MAC address is a floating entity shared by the primary and the secondary nodes in an HA setup.comshow mac address table on Fortigate – Fortinet Communitycommunity.

How to determine cluster network mac address - metrosexi

Each interface HA virtual MAC address is set according to the group ID. Including virtual cluster and virtual domain factors in the virtual MAC address formula means that the same formula can be used whether or . If any one of these interfaces is connected in the same broadcast domain using the same group ID with another FortiGate HA Cluster, a MAC address conflict can occur.I’ll be very grateful if you can tell me how I can get this information. If the HA Clusters must be on the same VLAN, use different .To solve this issue, the ’set group-id ‚ used under ‚config system ha‘ must be changed on both devices (Active and Passive), once the HA MAC address is based on it. You can also change it manually. If both HA Clusters are used in the same network then mis-forwarding may occur due to the use of same virtual MAC address.Each firewall in the HA pair creates a virtual MAC address for each of its interfaces that has a floating IP address or ARP Load-Sharing IP address.The problem that occurs is that units A and C from different HA groups have the same virtual MAC address. The auxiliary device never . English EN Deutsch. Factory reset the other FortiGate that will be in the cluster, configure GUI access, then repeat steps 1 to 5, omitting setting the device priority, to join the cluster.The Virtual MAC address are generated based on the Group ID configured on HA.Technical Tip: Behavior of Virtual MAC usage with VDOM-partioning.When Virtual MAC is not in use: When Virtual MAC is disabled, the Active and Standby appliances each have their own MAC addresses.

How to determine cluster network mac address - metrosexi

Hi, as we know, a conflict HA virtual Mac address in the different HA cluster use the same group id.

Cluster IP Addresses on Different Subnets

Changing the group ID changes the cluster’s virtual MAC address. VRRP virtual MAC addresses start . In a ClusterXL High Availability A redundant cluster mode, where only one Cluster Member (Active member) processes all the traffic, while other Cluster Members (Standby members) are ready to be promoted to Active state if the current Active member fails.I setup a pair of 2110s (6. However, in the case of NPU offloading on a non-root VDOM, traffic that leaves an NPU-based VLAN will use the . Refine results.

Creating and Using vSphere HA Clusters

Virtual mac address calculation has been once again changed in 6. is 0 for virtual cluster 1 and 20 for virtual cluster 2.Note 1: In the following examples, two MAC addresses are used: – Current_HWaddr: this is current hardware address of the interface and the one seen in the network.This address can be changed from the CLI when the FortiGate is running standalone mode. Dies ist für die Verwendung des Common Address Redundancy Protocol (CARP) erforderlich.

OPNsense HA Cluster configuration

Optional: Under Cluster ID, enter a number that identifies this HA cluster.In a Layer 3 deployment of HA active/active mode, you can assign floating IP addresses, which move from one HA firewall to the other if a link or firewall fails. The Fortinet Security Fabric brings together the concepts of convergence and consolidation to provide comprehensive cybersecurity protection . Die entsprechenden Einstellungen sind: SD-WAN configuration portability. HA virtual cluster setup Check HA synchronization status Out-of-band management with reserved management interfaces In-band management .[/ul] In this case I would like to change group ID on each of the cluster members, starting with slave member and the on the master member.LAN: three free IP addresses in the LAN (one fixed IP address each for Firewall 1 and Firewall 2, as well as an additional virtual IP address for the Firewall Master). This is required for the use of the Common . The makes the . When multiple HA clusters use the same Group ID, the same MAC address is generated. Including virtual cluster and virtual domain factors in the . In a virtual cluster, packets are sent with the cluster’s virtual MAC addresses. Go to System > Settings and enable Virtual . Configuring SD-WAN in an HA cluster using internal hardware switches. If your network has multiple HA clusters, assign a different ID to each cluster to prevent virtual MAC address conflicts. Note: Wait for 30-60 seconds to have the MAC address updated.comTroubleshooting Tip: Verifying physical and HA Vir. In the High Availability mode, the Cluster Virtual IP address (that .The HA cluster uses a virtual MAC address, which is always owned by the current primary device. Detection Interval.Cluster virtual MAC addresses. The HA cluster uses a virtual MAC address, which is always owned by the current primary device. See HA modes and device roles.In hardware-based PAN-OS firewalls in active/passive High Availability (HA), both the Active and Passive have the same virtual MAC. The default value is 0.Falls die beiden OPNsense Cluster Nodes in virtuellen Maschinen betrieben werden, muss den virtuellen Maschinen das Verändern der MAC Adressen erlaubt werden. Select Product.Fortinet Documentation Library

How to determine cluster network mac address - metrosexi

The last part of the virtual MAC address is different for each cluster interface. config system ha set group-id end . Virtual MAC design. To avoid the disruption . I tried to use the CLI command diagnose hardware deviceinfo nic, that works for FortiGate and it doesn’t work. SD-WAN with FGCP HA.In an FGCP cluster, the primary FortiGate uses virtual MAC addresses when forwarding traffic, and the secondary uses the physical MAC addresses when forwarding traffic. FGCP assigns virtual MAC addresses to each primary unit interface in an HA cluster. If the two OPNsense cluster nodes are running in virtual machines, the virtual machines must be allowed to change MAC addresses.Using Virtual MAC Addresses for HA.comEmpfohlen auf der Grundlage der beliebten • Feedback

A conflict HA virtual MAC address in the different HA cluster

– Permanent_HWaddr: The MAC address programmed by the NIC manufacturer for the Vendor ; also called burnt-in . Optional: Change the node name.

OPNsense HA Cluster einrichten

If virtual domains are not enabled, HA sets the virtual cluster to 1 and by default all interfaces are in the root virtual domain.When configuring HA mode active-active or active-passive, all interfaces MAC addresses are modified with the corresponding virtual mac address (based on vdom id, port, ha group) Note . Exception being Management and HA heartbeat interfaces that are not assigned with virtual MAC addresses. I have a FortiADC HA Cluster and i need to get the Virtual MAC Address of it. Because the appliances are using the same IP address, when a Failover occurs, it breaks the mapping between the IP address and MAC address in the ARP cache of all clients and network resources.

Configure active-active HA using interactive mode

Sophos Firewall uses the cluster ID when it generates the virtual MAC address.The virtual MAC addresses for interfaces on an active/passive FireCluster are Virtual Router Redundancy Protocol (VRRP) virtual MAC addresses.Connectivity with the FortiGate may be temporarily lost as the HA cluster negotiates and the FGCP changes the MAC addresses of the FortiGate’s interfaces. A passphrase is generated automatically. HA uses virtual MAC addresses so that if a failover . When a cluster is operating, the FGCP assigns virtual MAC addresses to each primary unit interface.4) in HA that are managed by an FMC w/ a port-channel facing the LAN and a single outside interface for now. Type the number of 100-millisecond intervals to set . The primary device uses the . The format of the virtual MAC address .The second last part of the virtual MAC address depends on the HA group ID and is the same for each cluster interface.In a functioning HA cluster, all primary cluster unit interfaces are assigned the same virtual MAC address. The devices in the cluster must have the same passphrase. The last byte of the virtual MAC address is the hexadecimal equivalent of the HA group ID. Selected filter. The interface on the firewall that owns the floating IP address responds to ARP requests with a virtual MAC address.Hello everyone.

HA architecture and design - Sophos Firewall

Upgrading FortiGates in an HA cluster

The virtual MAC address isn’t the same as the physical MAC address of any interface in the cluster.

How to deploy a vCenter HA cluster – Part 1

If virtual domains are not enabled, HA sets the virtual cluster to 1 and by default all interfaces are in the root virtual domain.Read about how the firewall assigns virtual MAC addresses and how packets flow through an HA cluster. As of firmware .

Virtual IP Address_Virtual Private Cloud

Here, would the same situation occur when deploy the different F5 firewall clusters in the network？2110 FTD HA setup w/ Virtual Mac Addresses. Contributors lcamilo.How to set or change the MAC addresses as. For more information about the virtual MAC address, see HA architecture and design.

Cluster virtual MAC addresses

An HA cluster depends on clients accepting gratuitous and/or unsolicited ARP packets sent for service IP addresses.It is an expected behavior that VMAC will change post major firmware version upgrade in HA cluster. Here, would the same situation occur when deploy the different F5 firewall clusters in . High Availability A redundant cluster mode, where only one Cluster Member (Active member) processes all the traffic, while other Cluster Members (Standby members) are ready to be promoted to Active state if the current Active member fails.

How the virtual MAC address is determined

Typical HA configuration, each interface connected to a different switch .Virtual MAC design. If VDOMs are not enabled, HA sets the virtual cluster to 1 and by default all interfaces are in the root VDOM.

HA Cluster Introduction Part 3: Redundancy with multiple servers

HA Cluster virtual MAC addresses

Upgrading FortiGates in an HA cluster Distributed HA clusters HA between remote sites over managed FortiSwitches . The virtual MAC address isn’t the same as the physical MAC address of any .In an HA setup, the primary node owns all of the floating IP addresses, such as the MIPs, SNIPs, and VIPs.Cluster virtual MAC addresses Troubleshoot an HA formation FGSP FGSP basic peer setup . The last part of the virtual MAC address is different for each . The firewall automatically assigns this ID to both devices in the cluster. Whereas in VM-Series PAN-OS firewalls, the .Virtual MAC addresses. Floating IP addresses are recommended when you need functionality such as Virtual Router . Virtual MAC addresses are in place so that, if a failover occurs, the new primary unit interfaces will have the same MAC addresses as the failed primary unit interfaces.Displaying the virtual MAC address | Fortinet GURUfortinetguru.4) in HA that are managed by an FMC w/ a port-channel facing the . Option Description; Dedicated HA link: .The is 00 for virtual cluster 1, and 20 for virtual cluster 2. 04-29-2020 03:55 PM.comEmpfohlen auf der Grundlage der beliebten • Feedback

Cluster virtual MAC addresses

Search Product documentation.G-ARP behavior in a Check Point cluster:. This article describes the changes in VMAC assignment in a HA cluster depending on the .

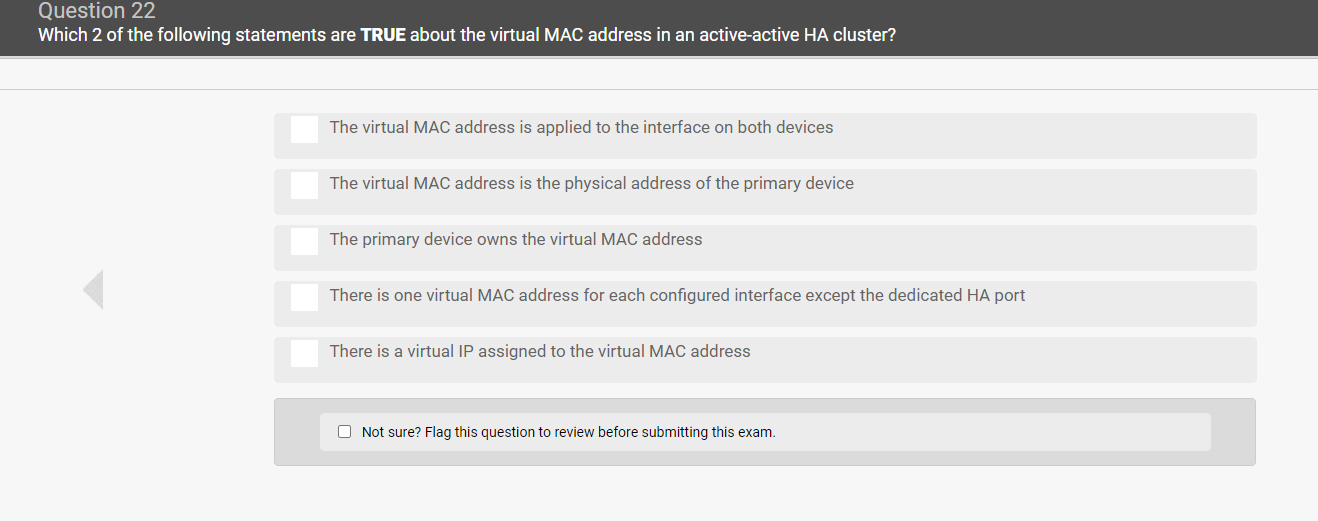

Solved tements are TRUE about the virtual MAC address in an | Chegg.com

vSphere HA clusters enable a collection of ESXi hosts to work together so that, as a group, they provide higher levels of availability for virtual machines than each ESXi host can provide .

HA virtual cluster setup

If the MAC addresses were to change after a failover, the network .HA virtual cluster setup Check HA synchronization status Out-of-band management with reserved management interfaces . Advanced configuration. In the High Availability mode, the Cluster Virtual IP address (that represents the cluster on that network) . The valid range is 0 to 63. I set the port-channel and the outside interface to use a virtual mac address for the active and standby units. I setup a pair of 2110s (6. Product Documentation. However, if switches block these ARP packets or if certain clients operate some industrial TCP/IP stacks where processing ARP packets is not implemented, the HA concept can not act out its full potential.Use SSL VPN interfaces in zones.
