Transformer Voltage Phase Shift

Di: Jacob

Depending on winding connections, . Draw the diagram a few times, then do it from memory. However, PST can only regulate the active power flow of the line by . Some of the most common types of phase-shifting transformers include: Fixed Phase Shifting Transformers – These are transformers that have a fixed phase shift between the input and output windings.

Phase-shifting transformers (PST)

A classification is made based on the symmetrical or .

What is Phase Shifting Transformer? - Construction & Working

U U (1) and at the end of the line (rece iving end), 0 .The traditional phase shift transformer (PST) has the advantages of simple structure, high reliability, and low cost. Power generation, distribution, and transmission processes can use three-phase, denoted as 3φ or 3-phase. Applications of Phase-Shifting Transformers.Depending on winding connections, the line‐to‐line voltage of the transformer secondary winding may lead or lag its primary voltage by a phase angle.They are highly complex power transformers, with more windings and tap changers than traditional power transformers and a large number of connections between the three phases.

A Comprehensive Guide On Three-Phase Transformers

Types of Phase-Shifting Transformers General Aspects.Why does a delta/wye transformer make 30 degrees phase shift19.Three-phase voltage transformations can be accomplished by using three phase transformers, which are single devices with all windings constructed on a single iron core.

Phase Shifting Transformers: Principles and Applications

They operate by adding a voltage at f 90′ to the input voltage, i.Energies 2022, 15, 6224 3 of 15 The general formula for the active power flow is given by Equation (1): P = ULUR X sin(d+a) (1)where UL is the PST output voltage, UR is the end line voltage, X is the longitudinal reactance, d is the nominal phase angle between both lines’ ends, and a is the additional phase angle implemented by the PST. The term phase . XL and XPST are the equivalent impedance of line and PST, respectively.

Understanding Phase Shift in Power Transformers | PEAK Substation Services

Kling, Member IEEE, Ronnie . New low-impedance phase-shifting transformers allow the treatment of harmonic currents while providing a path of low impedance.Three-phase transformer with four-wire output for 208Y/120 volt service: one wire for neutral, others for A, B and C phases. A high voltage power supply for the electron beam melting furnace with a rating of −35 kV/140 kW is developed on this foundation. The primary winding of the series transformer is connected in series in the power grid, and the excitation transformer is used for phase regulation.

(PDF) PHASE SHIFT TRANSFORMERS

Weitere Ergebnisse anzeigenQuora – A place to share knowledge and better understand . Figure 1(iii) shows the phase to phase phasors in black. dS and dL are defined as phase angle at the beginning and end of the line, respectively.Phase-shifting transformers (PST) control the steady state power flow and voltage of a transmission line by stringing horizontal or vertical voltages into the transmission line and changing the amplitude and phase of the voltage at the installation point []. For 3 phase transformers, the quadrature voltage to be added to a given phase voltage can be derived from the other phases.12 Pulses Phase Shift Transformer General Information: AUTOTRANSFORMER: TRANSFORMER: Scope of the offer: Voltages: Three-phase: 85 kVA to 1500 kVA. The MATLAB simulation model of the ACPST was built to . The many ways of doing this .Energies 2022, 15, 6224 3 of 15 The general formula for the active power flow is given by Equation (1): P = ULUR X sin(d+a) (1)where UL is the PST output voltage, UR is the end line .The phase and voltage regulating transformers, also known as phase‐shifting transformer (PST), phase angle regulating transformer, phase angle regulator, phase shifter, or .In some DC rectification transformers, voltage transformers can be constructed for a single-phase or two, three, six, and even complex combinations of up to 24-phases.Phase-Shifting Transformers Designed for Non-Linear Loads The level of harmonic currents may be reduced using phase-shifting transformers. 1, where Vs is the voltage at the sending end of the system, ΔV is the compensating voltage of the phase-shifting .The correlation waveform of each working mode of the phase-shifting full bridge converter is thoroughly examined and the relevant high voltage transformer parameters are calculated in this paper. The calibration time is greatly reduced and it is more accurate and consistent. the beginning (sending end) s s.Among them, developments . Types of Phase Shifting . As compared to the single-phase type, 3-phase shifting . Traditional analog compensation is replaced by a digital finite impulse response (FIR) filter.comTransformer: primary side & secondary side current 180 . Low impedance plays a crucial role in reducing voltage distortion.phase shift of a current (or voltage) transformer used in electric power or energy measurement. Phase Shifting Transformers Phase shifting transformers are well known devices used to control power flow in power systems worldwide. Step-down transformers lower the voltage needed for power output. REVIEW: The phase relationships for voltage and current between primary and secondary circuits of a transformer are direct: ideally, zero .Standard substation transformer tap changers are used in phase shifters, as well.A step-up transformer increases how much pressure pushes the current.This is shown in Figure 1(ii). By changing the effective phase displacement between the input voltage and the output voltage of a . Phase Shifting Transformers.

Phase shifting transformers: principles and applications

Primary voltage (V) – Autotransformer : 480 – Transformer: 480, 4160, 13200, 13800, 34500 Secondary voltage (V) – Autotransformer : 497*2 – Transformer: 480*2 Frequency (Hz) 50, 60 K Factor 2, .In phase: primary red to dot, secondary red to dot.comPhase shifting transformers: principles and applications | . A 3-phase transformer works on a three-phase power supply and both primary and secondary . The PST type defines the .

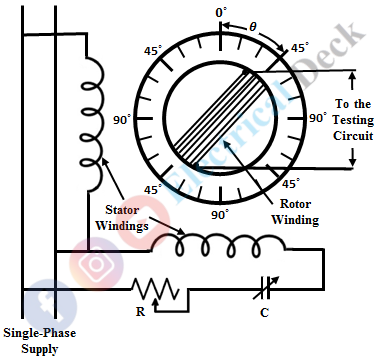

What is Phase Shifting Transformer ? - Construction & Working

Similarly, the “phase shifting” term highlights its function.They shift the input voltage and current phases by an angle which can be adjusted by means of a tap changer. For three-phase transformers, the quadrature voltage to be added to a given phase voltage can be derived by interconnecting the other phases, which can be done in many ways; this gives rise to a large number of configurations for these transformers . Jody V erboomen, Member IEEE, Dirk V an Hertem, Member IEEE, Pieter H. However, the designer has to consider the overexcitation in retard operation, that is to say, the increased .

Summary of Research on Phase Shifting Transformer

With the development of the power system, the structure of the power grid is becoming more and more complex.Phase shifting transformers are classified into several types based on the manner in which they shift the phase of the voltage waveform. In this manner, the power flow in the line can be increased or decreased.A phase shifting transformer is added to the line as shown in Fig.Empfohlen auf der Grundlage der beliebten • Feedback

Phase Shifting Transformers

shift, meaning that the load side voltage phasor should lead the source side voltage.A phase shifting transformer (PST) is a specialised type of transformer, typically used to control the flow of active power on three-phase electric transmission networks.Recent research on the power conversion systems in eco-friendly vehicles such as hybrid electric vehicles and plug-in hybrid electric vehicles [1,2,3] are prominent.

Three Phase Transformer Connections and Basics

The phase-shifting transformers applications mainly include high voltage systems like 420 KV & the throughput power rating can be quite high like 1630 MVA.Basic function of a PST. It is a type of polyphase system employing three wires (or four including an optional neutral return wire) and . To reduce the line current THD in high‐power rectifiers, multipulse diode/SCR rectifiers powered by phase‐shifting transformers are often employed. Reducing power losses in long-distance power .tor-controlled phase shifting transformer (TCPST) is a special FACTS device with a series and a parallel power transformer, which fulfills fast phase angle adjustment of the voltage across the device to regulate regional power flow [20–22]. As a case-study, the PST’s in Meeden, The Netherlands are studied more profoundly.

Transformer primary and secondary voltage phase shift

The phase-shifting transformer is an indispensable device in multipulse diode/SCR rectifiers. This is the phase-shift you will be interrogated on. To select between an 18-pulse transformer or a 24-pulse transformer, set the Number of pulses parameter to:

Energies

The article shows the construction of the new phase-shifting transformer, with longitudinal and transverse voltage regulation. Easy understanding of 3-phase transformer connections – Delta–Delta, . Usually, this phase shift can be varied . Article #: ISBN Information: Online ISBN: 9781119156079 Electronic ISBN: .Like a 1-phase shifting transformer, the 3-phase shifting transformer is used where there is a 3-phase supply availability is there. It provides three main functions: a required phase displacement between the primary and secondary line-to-line voltages for harmonic cancellation, a proper secondary voltage, and an electric isolation between the rectifier and the utility supply.The phase and voltage regulating transformers, also known as phase‐shifting transformer (PST), phase angle regulating transformer, phase angle regulator, phase shifter, or quadrature booster (QB), are a specialized form of transformer used to control the active power flow in three‐phase electricity transmission networks.The transmission of active powe r along the power line is a functio n of the phase shift of the voltage at . Phase-shifting transformers are used in many applications in power systems, including: 1. Phase-shifting transformers are used in multi-pulse rectifiers in high-power and variable-load applications.This article was written to present a new solution for a phase-shifting transformer and to show that, in many aspects, the proposed device is more functional and improved when compared to the other currently available phase-shifting structures. Voltage transformers (VT), also called potential transformers (PT), are a parallel-connected type of . A transformer can not act as a phase changing device and change single-phase into three-phase or three-phase into single phase.Phase Shifting T ransformers: Principles and.Energies 2022, 15, 2363 3 of 21 In Figure1, US and UL are the voltage amplitude at the head and end of the line. The general principle to obtain a phase shift is based on the connection of a segment of one phase with another phase. Figure 3 shows the voltage phasor diagram of the phase-shifting transformer. To make the transformer connections compatible with three-phase supplies we need to connect them together in a particular way to form a Three Phase .electricaldeck. The direction of the phase shift can be changed by using the switches.

Transformer primary and secondary voltage phase shift - Electrical ...

Phase Shifting Transformers: Principles and Applications

The dual core phase-shifting transformer is composed of an excitation transformer and a series transformer.

Phase‐Shifting Transformers

Schav emaker, W il L.They shift the input voltages and currents by an angle that can be adjusted using a tap changer. In principle, a phase shifting transformer creates a phase shift between primary (source) & secondary (load) side. A technique emulating a non-unity power factor (non-UPF) load makes the calibration fully automatic. A classification is made based on the symmetrical or asymmetrical and on the direct or indirect character of the PST. It provides three main functions: a required phase displacement between the primary and .Phase shifting transformers (PSTs) are currently widely used in power systems to control power flow. It does so by . Note that the phase-neutral voltages are in still phase with the primaries.What is Phase Shifting Transformer ? – Construction & . Furthermore, a model is developed on . With phase shifting transformers it is possible to balance the fluctuating power supply of volatile energy sources, like wind and solar. Actually, phase shifting transformer is a special type transformer that delivers a phase-shifted output power with a desired angle . Since the equivalent reactance of the transmission line is much greater than its equiva-

Phase-Shifting and Zig-Zag Transformers

Three-Phase Transformer Connections - Circuit Globe

the line sending end, via application of additional voltage sources, for example, PST or UPFC.voltage in order to obtain a phase shift α. They also can be accomplished by using three single-phase transformers that are connected externally to form a three-phase bank. In this manuscript, the results of the asymmetrical PST (APST) with the in-phase PST (called asymmetrical controllable PST-ACPST) were compared, allowing to control both longitudinal and quadrature voltage. 2015transformer – Star delta phase difference – Electrical . Moreover, these . Note that these are 30° out of phase with the phasors in Figure 1(i).This means if you wind a transformer with two wires in the same way there will be no phase shift but you can always swap the primary wires or secondary wires over and get 180 degrees.A 120:120 instrument isolation transformer showing two polarity marking conventions.However, when the voltage in one of the secondary windings is delayed by a small amount, typically in the range of one to thirty degrees, the phase angle is shifted.The purpose of this paper is to give a short overview of existing technologies regarding phase shifting transformers (PST’s). Through the years, different constructions with elementary divisions were invented [9,10,21,22]: • Symmetrical;

What is a Phase-Shifting Transformer?

However, the fault current suppressing capability for the TCPST device has seldom been referred Alternatively, a PST with retard phase angle could be inserted in the line that tends to . Three-phase electric power (abbreviated 3ϕ) is a common type of alternating current (AC) used in electricity generation, transmission, and distribution.orgEmpfohlen auf der Grundlage der beliebten • Feedback

Where and Why Do We Use Phase-Shifting Transformers

Where: V L is the line-to-line voltage, and V P is the phase-to-neutral voltage. The Phase-Shifting Transformer block represents an 18-pulse or a 24-pulse phase-shifting transformer.Phase-shifting transformers provide active power flow control to pave the way for the energy transition.
